PV AUDIO PV-AV11 Series Karaoke Sound System Set (SIRIM & MCMC Approved)

📦 PACKAGE CONTENTS

2 x PV-AV116/AV118 6/8″ Speakers
2 x Speaker Cables Set
1 x FM/AM Antenna Wire
1 x PLYPVAV11 Karaoke Amplifier

🔈 SPEAKER (PV-AV116 – 6”)

Max Power: 2000W PMPO
Impedance: 4–8Ω
Sensitivity: 98 dB/W/M
Frequency Response: 20 Hz – 20 kHz
Dimensions: 21 cm × 36.5 cm × 20 cm
Weight: 2.46 kg per speaker
Quantity: 2 pcs

PV AUDIO PV-AV118 (8” Speaker)
Max Power: 2600W PMPO
Impedance: 4–8Ω
Sensitivity: 98 dB/W/M
Frequency Response: 20 Hz – 20 kHz
Dimensions: 23.5 cm × 42 cm × 23.5 cm
Weight: 4.93 kg per speaker

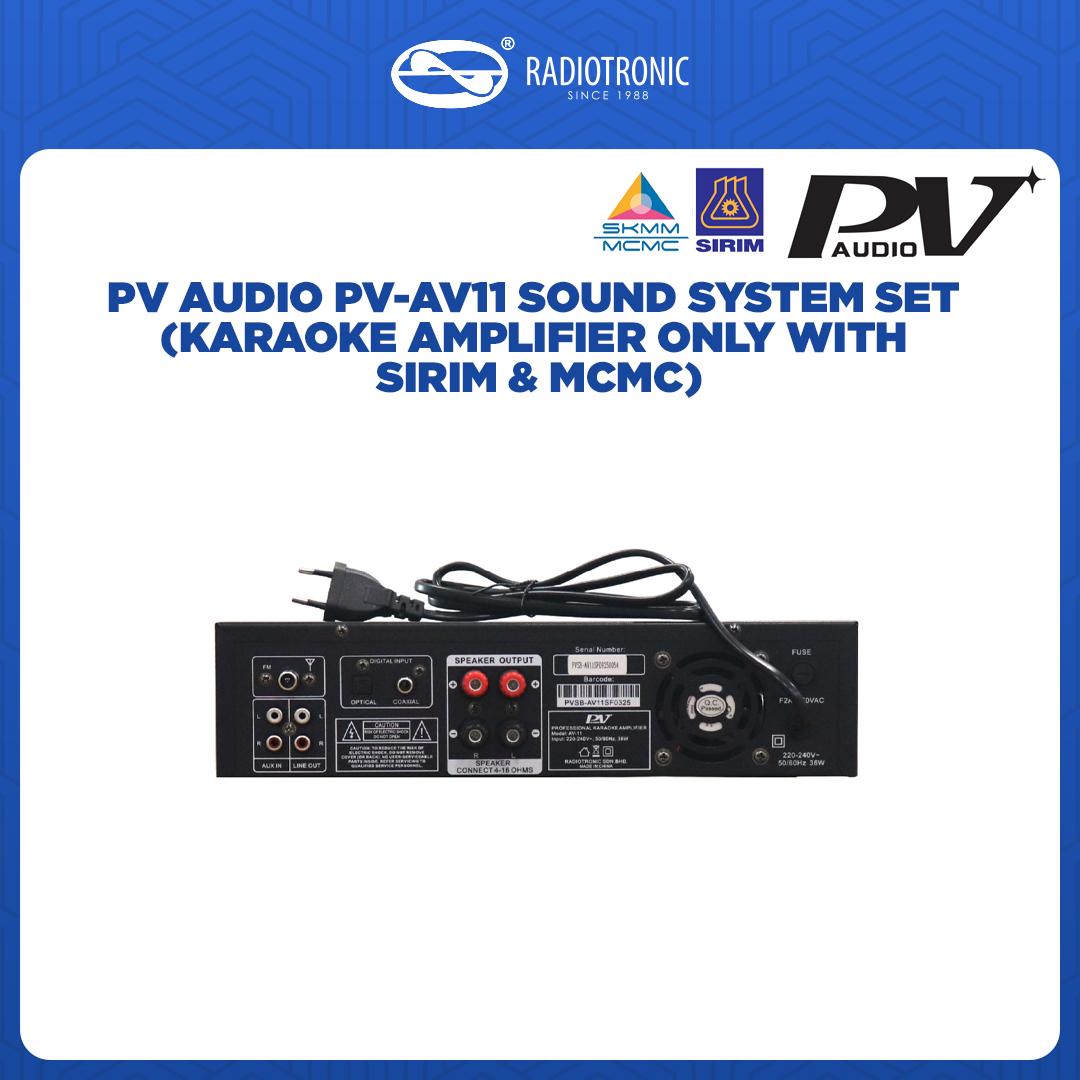

🎚 AMPLIFIER (PV-AV11 / PV-AV116 Set Amplifier)

Output Power (1kHz, THD+N≤1%): 18W + 18W (8Ω)
THD+N (20Hz–20kHz, Half Power): ≤0.5%
Frequency Response:
Music: 20 Hz – 20 kHz (±3 dB)
Mic: 40 Hz – 15 kHz (±3 dB)
Input Sensitivity:
AUX Input: 300 mV
Mic: < 15 mV
Channel Separation (8Ω, 1kHz, 600Ω): ≥35 dB
Residual Noise: ≥65 dB
Cooling System: 6 × 6 fan
Power Requirements: 220–240V, 50/60 Hz
Dimensions (W × H × D): 330 × 80 × 240 mm
Weight: 3.22 kg
